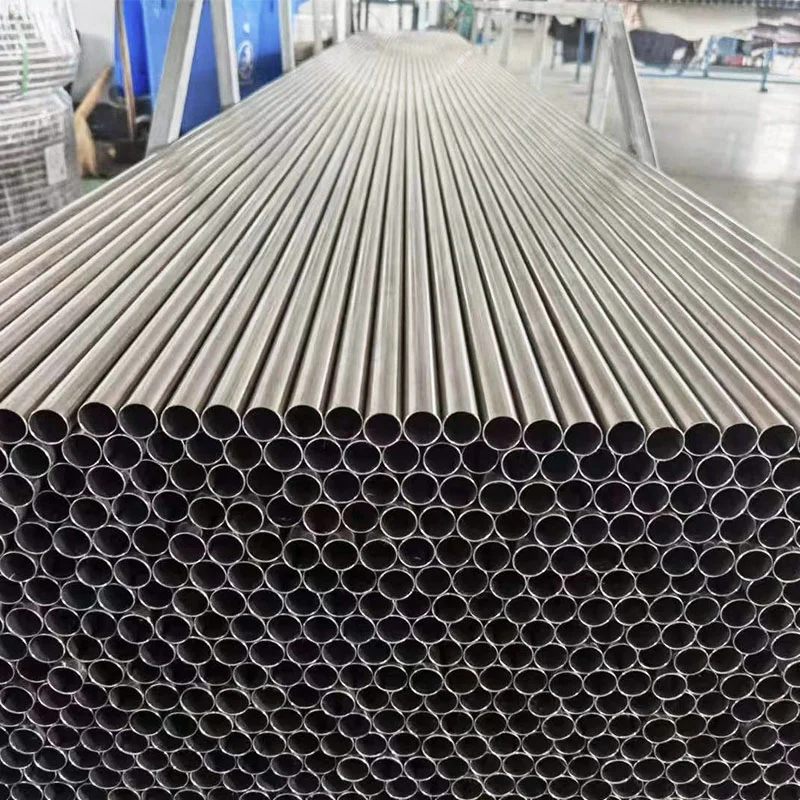

Titanium Tubes

Titanium tube is seamless or welded tubing specified by outside diameter and wall thickness, supplied per ASTM B338 for surface condensers, evaporators and heat exchangers in OD 3.0–114.3 mm and wall 0.4–10 mm.

Specify:

  • Standard and edition: ASTM B338 (or ASME SB-338)
  • Grade (for example Grade 2)
  • Route: seamless, welded, or welded and cold-worked
  • OD × wall thickness × length (mm), and any tolerance requirement
  • Surface: pickled, polished or bright annealed
  • Tests and documents: material test certificate (MTC), required tests, third-party re-testing on request
  • Quantity, delivery terms (FOB China main port / CIF) and destination

Also known as: Titanium Tube , Titanium Tubing, Seamless Titanium Tube

Titanium tubes are seamless or welded small-bore tubular products supplied per ASTM B338 in 7 titanium grades. Specified by outside diameter and wall thickness, they serve heat exchangers, condensers, hydraulic lines and bicycle frames, where corrosion resistance and low weight outperform stainless steel — from stock and custom production.

OD 3.0mm – 114.3mm
Wall Thickness 0.4mm – 10mm
Length Standard or cut-to-size
Shapes Round, Square, Rectangular
Surface Pickled, Polished, Bright Annealed
Standards ASTM B338
Available Grades 7 grades (1 in stock)

Quick Quote

24h Response

Send your drawing or specification for Titanium Tubes. We reply within 24 hours.

Reply within 24 hours 🔒 NDA available on request — your drawings stay confidential 📦 Small quantities ship as LCL; larger orders ship as full containers for simpler loading and customs inspection.

WhatsApp

Common Grades for Titanium Tubes

Click a grade to view its chemical composition and mechanical properties inline.

Grade 1

CPUNS: R50250GB: TA1

Softest, most formable CP titanium with best ductility. Ideal for deep drawing, welding, and chemical linings.

Full Grade Details →

Chemical Composition (wt%)

TiBalance
Fe0.20 max
O0.18 max
C0.08 max
N0.03 max
H0.015 max

Mechanical Properties

Tensile Strength240 MPa – 345 MPa
Yield Strength170 MPa – 310 MPa
Elongation (min)24%
Hardness120 HB
Elastic Modulus103 GPa

ASTM B338

In-Stock Dimensions

Grade 2 (TA2)

25.4*1*6000 38.1*1*6000

Titanium Tubes Weight Calculator

Calculated Weight

Per piece11.690 kg
Imperial25.773 lbs

Grade 5 Properties

Density4.43 g/cm³Tensile895–1000 MPaYield828–910 MPaElongation10%

Request Quote for This Specification →

⚡ 24h Quote

Get pricing & lead time for this exact specification.

Quality & Documentation

📋

Material Test Certificate

Every shipment includes a packing list and a material test certificate (MTC). Heat/lot number traceability is maintained.

🔬

Testing & Inspection

Material is inspected for appearance and dimensions before release; chemical composition and mechanical properties are tested and reported on the certificate; independent third-party re-testing can be arranged on request.

🚚

Delivery

Through our partner network, large orders typically take 30–60 days. FOB China main port / CIF worldwide.

Technical Guide: Titanium Tubes

An Introduction to Precision Titanium Tubes

Titanium tubes are high-performance tubular products manufactured to exact dimensional tolerances. Unlike pipes, which are used for fluid conveyance and measured by nominal size, tubes are defined by a precise outside diameter (OD) and a specific wall thickness (WT). This precision makes them essential for applications where fit, weight, and structural integrity are paramount.

Primarily used in heat exchangers, structural components, and precision instrumentation, titanium tubes leverage the material’s exceptional strength-to-weight ratio, superior corrosion resistance, and thermal stability. They can be produced in various shapes (round, square, rectangular) and are often manufactured seamlessly to ensure maximum pressure integrity and a smooth internal surface, which is critical for efficient heat transfer and fluid dynamics.


Available Dimensions & Specifications

We provide both seamless and welded titanium tubes, manufactured to meet the rigorous demands of modern engineering.

  • Manufacturing Types:
    • Seamless Tube: Manufactured to ASTM B338. The preferred choice for heat exchangers and high-pressure hydraulic lines.
    • Welded Tube: Manufactured to ASTM B338. Offers excellent performance and is a cost-effective choice for many structural and low-pressure applications.
  • Outside Diameter (OD): 3.0 mm to 114.3 mm (0.118” to 4.5”)
  • Wall Thickness (WT): 0.4 mm to 10 mm (0.015” to 0.394”)
  • Shapes: Round, Square, Rectangular, and custom profiles.
  • Length: Standard lengths or precision cut-to-size.

Common Titanium Tube Grades

The grade of titanium tubing is selected based on the specific mechanical, thermal, and environmental requirements of the application.

GradeCommon Name(s)Standard / Supply BasisKey Characteristics & FeaturesTypical Tube Applications
Grade 1 / Grade 2CP Ti Grade 1 / 2ASTM B338 / ASME SB-338Most common grades for tubing. Excellent corrosion resistance, good formability, and moderate strength.Condenser and heat exchanger tubing, desalination systems, low-pressure hydraulic lines.
Grade 7 / Grade 12Ti-0.2Pd / Ti-0.3Mo-0.8NiASTM B338 / ASME SB-338Enhanced crevice and reducing-acid corrosion resistance for elevated-temperature chemical service.Chemical process condensers, sour-gas and chloride heat exchangers, desalination evaporators.
Grade 9Ti-3Al-2.5VASTM B338 / AMS 4945Near-alpha alloy with high strength-to-weight ratio, good weldability, and cold formability.Aerospace hydraulic lines, high-performance bicycle frames, sporting goods, wheelchair frames.
Grade 5Ti-6Al-4VCustomer / Aerospace Drawing Spec (not an ASTM B338 grade)High-strength alpha-beta alloy used where mechanical strength is the top priority over cold formability.High-performance automotive components, structural tubing, motorsport exhaust systems.
Grade 23Ti-6Al-4V ELIASTM F136 Chemistry + Drawing Spec (not an ASTM B338 grade)Extra-low-interstitial version of Grade 5 with high fracture toughness and biocompatibility.Medical tubing for surgical instruments, cannulas, and orthopedic implant assemblies.

Example Applications of Titanium Tubes

The precision and performance of titanium tubes make them indispensable in a wide array of high-tech and industrial fields.

Heat Exchangers & Condensers

  • Power Plants & Chemical Processing: Titanium tubes are the industry standard for shell-and-tube heat exchangers and surface condensers, especially those using seawater or other corrosive cooling media.
  • HVAC & Refrigeration: Used in chillers and condensers where long-term corrosion resistance and efficient heat transfer are needed.

Aerospace & Automotive

  • Hydraulic & Fuel Lines: Grade 9 titanium tubing is used extensively in aircraft for hydraulic systems due to its high strength, low weight, and fatigue resistance.
  • Motorsport Exhaust Systems: Grade 5 titanium tubes are fabricated into lightweight, high-performance exhaust systems that withstand extreme temperatures.
  • Structural Frames: Used in custom automotive chassis and roll cages where strength and weight are critical.

Medical Instruments & Devices

  • Surgical Instruments: Lightweight, durable, and sterilizable tubes form the bodies of many advanced surgical tools.
  • Cannulas & Hypodermic Tubing: The biocompatibility and strength of titanium are ideal for medical tubing that comes into contact with the human body.
  • Implant Components: Used as structural elements in complex orthopedic implants.

Sporting Goods & Consumer Products

  • High-Performance Bicycle Frames: Titanium tubes are prized for their ride quality, low weight, and durability, creating “lifetime” bike frames.
  • Golf Club Shafts: The material’s properties allow for the design of lightweight shafts that increase swing speed.
  • Wheelchair Frames: Custom-built, lightweight titanium wheelchairs offer enhanced mobility and reduced user fatigue.

Frequently Asked Questions About Ordering

Are your titanium tubes seamless or welded, and what is the dimension range?
We supply both seamless and welded titanium tubes per ASTM B338 with outside diameters (OD) from 3.0 mm to 114.3 mm and wall thicknesses from 0.4 mm to 10 mm. For larger nominal pipe sizes (NPS 1/2" to 24", OD up to 325 mm and above) for process piping, see our Titanium Pipes supplied under ASTM B861 (seamless) and ASTM B862 (welded).
Which tests apply to ASTM B338 titanium heat exchanger and condenser tubes?
Per ASTM B338, the test package depends on the manufacturing route specified on the order: room-temperature tensile and flattening tests apply to all tubes; reverse flattening applies to welded tubes; ultrasonic examination (ASTM E213) applies to seamless and welded/cold-worked tubes; electromagnetic plus ultrasonic examination and hydrostatic or pneumatic testing apply to welded tubes; and seamless tubes undergo an electromagnetic, hydrostatic, or pneumatic test as specified.
Does every shipment include a material test certificate?
Every shipment includes a packing list and a material test certificate (MTC), reporting chemical composition and mechanical properties, with heat/lot number traceability.
What is your Minimum Order Quantity (MOQ) and delivery lead time?
Through our partner network, large orders typically take 30–60 days. Worldwide delivery is available via air express (DHL/FedEx/UPS), air cargo, or ocean freight.
How are titanium products packed for export?
Through our partner network, photos and weights are recorded before shipment; export packing and marking follow customer requirements.
