MMO Titanium Anodes — Mixed Metal Oxide Anodes for Cathodic Protection and Electrolysis

Titanium anodes and electrodes are Grade 1 or Grade 2 titanium substrates coated with iridium-based mixed metal oxides (MMO), engineered for dimensional stability during electrolysis. Tubular, ribbon, wire and flexible linear MMO anodes drive impressed current cathodic protection of pipelines, tanks, marine and concrete structures; mesh and plate electrodes serve electroplating, electrowinning and water treatment — coated and fabricated.

Coating Thickness Precious-metal loading (g/m²)
Standards ASTM B338 , ASTM B265 , ASTM B863
Available Grades 2 grades

Quick Quote

24h Response

Send your drawing or specification for Titanium Anodes & Electrodes. We reply within 24 hours.

Reply within 24 hours 🔒 NDA available on request — your drawings stay confidential 📦 Small quantities ship as LCL; larger orders ship as full containers for simpler loading and customs inspection.

WhatsApp

MMO Anode Product Range

Choose the anode format for your cathodic protection design. Each page lists sizes, current ratings, construction and inspection.

MMO Tubular Anode for Cathodic Protection

MMO Tubular Anode for Cathodic Protection

MMO-coated titanium tubular anodes on ASTM B338 Gr1/Gr2 tube for impressed current cathodic protection, Φ16–Φ32 mm, 0.5 m and 1 m, single or cable-connected strings.

Specifications → Datasheet (PDF)
MMO Flexible Anode (Linear Anode) for Pipelines and Tanks

MMO Flexible Anode (Linear Anode) for Pipelines and Tanks

MMO/Ti flexible linear anodes for cathodic protection of buried pipelines, tanks and vessels: MMO wire in carbon backfill, connected to the cable every 3 m, 500 m or 1,000 m reels.

Specifications → Datasheet (PDF)
MMO Ribbon Anode and Titanium Conductor Bar

MMO Ribbon Anode and Titanium Conductor Bar

MMO-coated titanium ribbon anodes, 6.35 × 0.635 mm and 12.7 mm widths on Grade 1 titanium, with ASTM B265 titanium conductor bar, for cathodic protection in low-chloride soil and concrete.

Specifications → Datasheet (PDF)
MMO Wire Anode for Cathodic Protection

MMO Wire Anode for Cathodic Protection

Ir-Ta MMO-coated titanium wire anodes, Φ1.0, Φ1.5 and Φ3.0 mm on ASTM B863 Grade 1 wire.

Specifications → Datasheet (PDF)

Substrate Grades

Titanium grades used for the anode substrate. Click a grade to view its composition and properties.

Grade 1

CPUNS: R50250GB: TA1

Softest, most formable CP titanium with best ductility. Ideal for deep drawing, welding, and chemical linings.

Full Grade Details →

Chemical Composition (wt%)

TiBalance
Fe0.20 max
O0.18 max
C0.08 max
N0.03 max
H0.015 max

Mechanical Properties

Tensile Strength240 MPa – 345 MPa
Yield Strength170 MPa – 310 MPa
Elongation (min)24%
Hardness120 HB
Elastic Modulus103 GPa

Substrate

Quality & Documentation

📋

Measured Inspection Report

Every batch ships with an outgoing inspection report that records measured values, not just pass/fail.

🌏

Export & Trade Terms

Shipped to Malaysia and Dubai (UAE). Quoted FOB, CIF or DDP, with import customs clearance handled for DDP.

⏱️

Reply Within 24 Hours

Every enquiry receives a reply within 24 hours.

Technical Guide: Titanium Anodes & Electrodes

MMO Titanium Anodes for Impressed Current Cathodic Protection

A mixed metal oxide (MMO) anode is a titanium substrate carrying a thin catalytic coating of iridium-based oxides. The titanium does not dissolve and carries the current; the coating does the electrochemical work at a very low consumption rate. Because the anode keeps its shape and dimensions for its whole design life, it is also called a dimensionally stable anode (DSA).

In an impressed current cathodic protection (ICCP) system, a transformer-rectifier drives current from these anodes through the soil, water or concrete to the protected steel. Our range covers four MMO anode formats used in ICCP systems, plus mesh and plate electrodes for industrial electrolysis.


Product Range

Anode typeSubstrateTypical installationDetails
MMO Tubular AnodeGr1 / Gr2 titanium tube, ASTM B338Deep-well and shallow groundbeds, seawater and fresh waterSizes & current ratings
MMO Flexible AnodeMMO wire inside carbon (coke) backfill and braided sleeve, cable connected every 3 mBuried oil and gas pipelines, underground storage tanks, petrochemical vesselsConstruction & specifications
MMO Ribbon AnodeGr1 titanium strip with Ti conductor bar, ASTM B265Grids under storage tank bottoms, reinforced concreteSizes & coils
MMO Wire AnodeGr1 titanium wire, ASTM B863Horizontal and shallow vertical groundbeds, tanks, cable protectionCurrent output by design life

Mesh anodes, plate electrodes and deep-well anode assemblies are produced to drawing; send the dimensions and operating conditions with your enquiry.


Coating Systems

The coating is chosen by the reaction the anode has to drive.

CoatingPrimary reactionWhere it is used
Iridium-tantalum (Ir-Ta) MMOOxygen evolutionSoil and concrete with little or no chloride, fresh water, electrowinning, electroplating
Ruthenium-iridium (Ru-Ir) MMOChlorine evolutionSeawater and brine, electrochlorination, hypochlorite generation

For cathodic protection the coating system is confirmed per order against the electrolyte the anode will work in.


Outgoing Inspection

Every batch ships with an outgoing inspection report that records measured values. Coating is accepted by precious-metal loading (g/m²), not by micron thickness alone. For ribbon and wire anodes, the inspection items are agreed with the order.


Shipping and Response

  • Shipping: anodes have been shipped to Malaysia and Dubai (UAE). We quote FOB, CIF or DDP; for DDP we handle import customs clearance.
  • Response: every enquiry receives a reply within 24 hours.

Production and Testing

  • Certification: Anode processing at an ISO-certified partner facility (certificate available on request).
  • Substrate certificate: every order is supplied with a material test certificate (MTC) for the titanium substrate, stating the grade and the ASTM standard it was produced to.

Industrial Electrochemistry

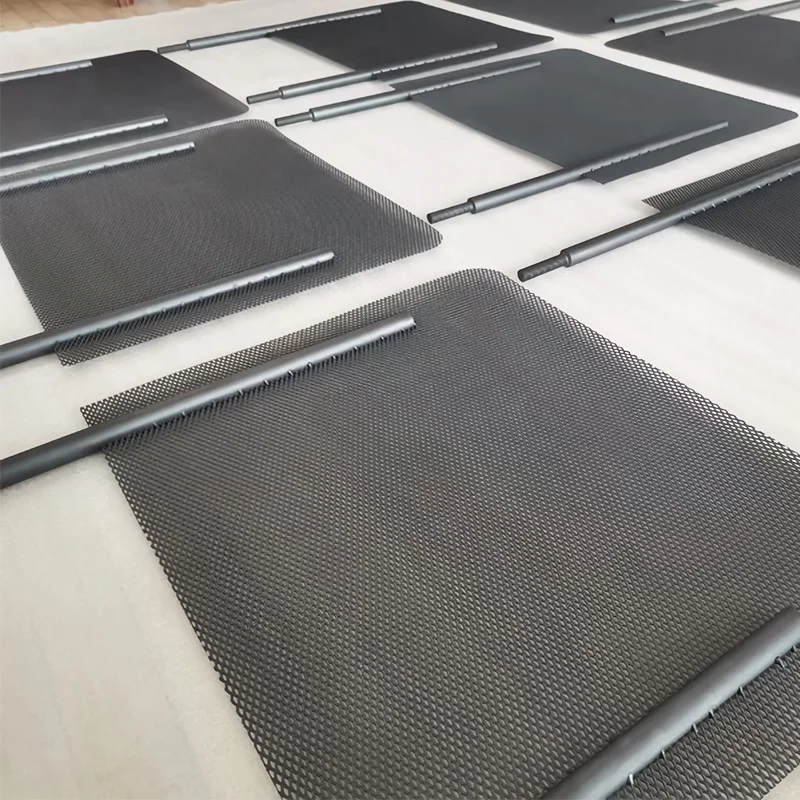

The same substrates and coatings are made up as mesh, plate and custom electrodes for:

  • Hypochlorite generation: electrolytic cells producing sodium hypochlorite solution on site.
  • Copper recovery: electrowinning copper from copper sulphate electrolyte.
  • Electroplating: insoluble anodes for precious-metal plating and PCB copper plating.
  • Metal foil production: anodes for copper foil and aluminium foil lines.
  • Cooling water treatment: electrochemical descaling of cooling water systems.

What to Send With an Enquiry

To size anodes for a cathodic protection system, the following lets us quote without a second round of questions:

  • Structure to be protected and its surface area or length
  • Environment: soil resistivity, seawater, fresh water or concrete, and chloride content
  • Total current requirement and the required design life
  • Anode format, cable type and cross-section, cable lengths and connection method
  • Quantities and delivery destination

Current ratings on these pages are typical design values; final ratings are confirmed per project. Request an anode quotation or contact our team.

Frequently Asked Questions About Ordering

How is MMO anode coating quality and thickness actually verified upon delivery?
MMO coatings are conductive porous noble metal oxides. Standard eddy current paint thickness gauges drift significantly and cannot serve as acceptance criteria. The true industry benchmark is precious metal loading (g/m²) combined with accelerated life testing. We certify exact g/m² noble metal loading on every batch.
Can used titanium anodes be recoated to save replacement costs?
Yes. Used anodes can be recoated through our partner network: the old coating is fully removed and reapplied on the reused titanium substrate. We completely strip the spent oxide down to bare titanium and re-sinter fresh MMO coating. (Note: TC4 / Gr5 alloy substrates cannot be used for MMO anodes).
Does every shipment include a material test certificate?
Every shipment includes a packing list and a material test certificate (MTC), reporting chemical composition and mechanical properties, with heat/lot number traceability.
What is your Minimum Order Quantity (MOQ) and delivery lead time?
Through our partner network, large orders typically take 30–60 days. Worldwide delivery is available via air express (DHL/FedEx/UPS), air cargo, or ocean freight.
How are titanium products packed for export?
Through our partner network, photos and weights are recorded before shipment; export packing and marking follow customer requirements.
