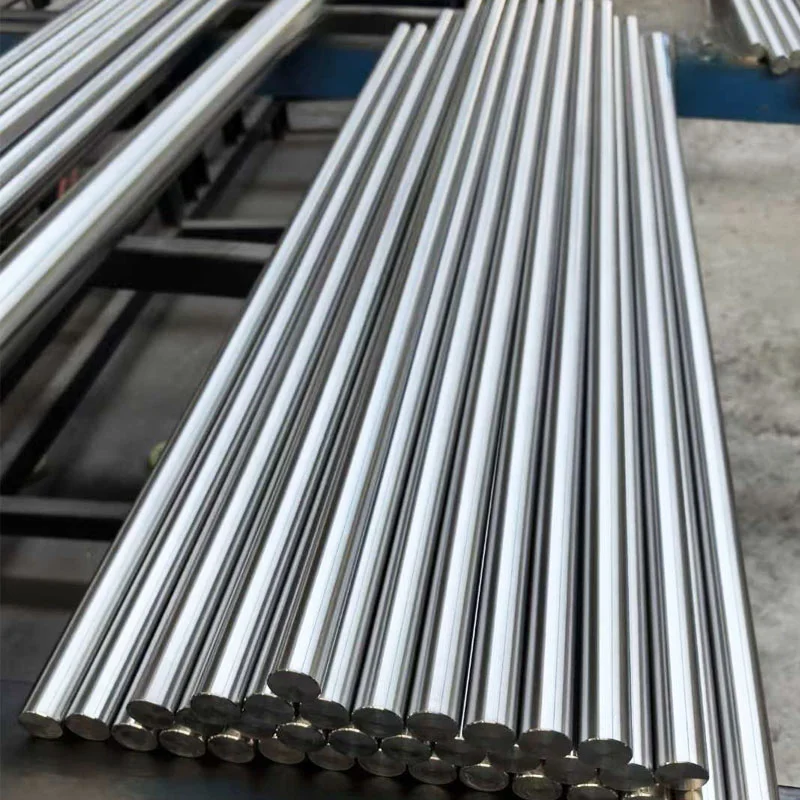

Titanium Rods & Bars

Also known as: Titanium Rod , Titanium Bar, Titanium Bar Stock, Titanium Round Bar

Titanium rods and bars are round mill products supplied per ASTM B348, GJB, ASME in 12 titanium grades, from commercially pure to Ti-6Al-4V. They are the standard machining stock for aerospace fasteners, medical implants, marine shafts and industrial components, available from stock and custom production.

Diameter 3mm – 350mm
Length Up to 6000mm
Surface Black (as-forged/rolled), Turned/Peeled, Ground/Polished
Tolerance Rolled: tolerance <=0.15mm, ovality <=0.15% (continuous-rolled bar, partner-mill figure); ground/polished h6, h7, h8, h9
Standards ASTM B348 , GJB , ASME
Available Grades 12 grades

Quick Quote

24h Response

Send your drawing or specification for Titanium Rods & Bars. We reply within 24 hours.

Reply within 24 hours 🔒 NDA available on request — your drawings stay confidential 📦 Small quantities ship as LCL; larger orders ship as full containers for simpler loading and customs inspection.

WhatsApp

Common Grades for Titanium Rods & Bars

Click a grade to view its chemical composition and mechanical properties inline.

Grade 1

CPUNS: R50250GB: TA1

Softest, most formable CP titanium with best ductility. Ideal for deep drawing, welding, and chemical linings.

Full Grade Details →

Chemical Composition (wt%)

TiBalance
Fe0.20 max
O0.18 max
C0.08 max
N0.03 max
H0.015 max

Mechanical Properties

Tensile Strength240 MPa – 345 MPa
Yield Strength170 MPa – 310 MPa
Elongation (min)24%
Hardness120 HB
Elastic Modulus103 GPa

Made to order

Titanium Rods & Bars Weight Calculator

Calculated Weight

Per piece17.397 kg
Imperial38.353 lbs

Grade 5 Properties

Density4.43 g/cm³Tensile895–1000 MPaYield828–910 MPaElongation10%

Request Quote for This Specification →

⚡ 24h Quote

Get pricing & lead time for this exact specification.

Quality & Documentation

📋

Material Test Certificate

Every shipment includes a packing list and a material test certificate (MTC). Heat/lot number traceability is maintained.

🔬

Testing & Inspection

Material is inspected for appearance and dimensions before release; chemical composition and mechanical properties are tested and reported on the certificate; independent third-party re-testing can be arranged on request.

🚚

Delivery

Through our partner network, large orders typically take 30–60 days. FOB China main port / CIF worldwide.

Technical Guide: Titanium Rods & Bars

An Introduction to Premium Titanium Rods

Titanium rods, also known as titanium bars, are high-performance solid metal bars renowned for their exceptional combination of high strength, low weight, and superior corrosion resistance. Manufactured through processes like forging, rolling, or extrusion, these rods possess excellent structural integrity and mechanical properties, making them the material of choice for critical components in the most demanding industries.

From aerospace structural components to biocompatible medical implants, titanium rods provide a reliable and long-lasting solution where performance cannot be compromised. Their inherent ability to withstand harsh environments, including saltwater, acidic solutions, and extreme temperatures, ensures unparalleled durability and safety in mission-critical applications.


Available Dimensions & Specifications

We offer a wide variety of titanium rods to meet your precise engineering needs. Our rods can be supplied with different surface finishes and cut to your required lengths.

  • Diameter Range: 3.0 mm to 350 mm (0.118” to 13.78”)
  • Length: Standard lengths up to 6000 mm or custom cut-to-size lengths.
  • Surface Finish: Black (as-forged/rolled), Turned/Peeled (machined), or Ground/Polished.
  • Tolerances: Standard and precision tolerances (e.g., h6, h7, h8) are available upon request.

Please contact our technical sales team for custom dimensions or special tolerance requirements.


Common Titanium Rod Grades

Our inventory includes a comprehensive range of commercially pure (CP) and alloyed titanium grades. The table below highlights the most frequently requested grades and their typical applications for rod products.

GradeCommon Name(s)Key Characteristics & FeaturesTypical Rod Applications
Grade 2CP Ti Grade 2The most common CP grade. Offers good strength, excellent corrosion resistance, weldability, and formability.Industrial fasteners, pump shafts, valve bodies, heat exchanger components, chemical processing equipment.
Grade 4CP Ti Grade 4The strongest of the commercially pure grades. Offers higher strength than Grade 2 with good formability.High-strength fasteners, airframe components, cryogenic vessels, and certain surgical hardware.
Grade 5Ti-6Al-4VThe most widely used titanium alloy (“workhorse” alloy). Excellent strength, low weight, and good fatigue resistance.Aerospace structural parts, engine components, landing gear, high-performance automotive parts, marine shafts.
Grade 23Ti-6Al-4V ELI”Extra Low Interstitial” version of Grade 5. Higher purity, enhanced ductility, and superior fracture toughness. Excellent biocompatibility.Medical and dental implants, including hip stems, spinal fixation rods, bone plates, and screws. Surgical instruments.
Grade 7Ti-0.2PdSuperior corrosion resistance, especially in reducing acids and crevice corrosion environments, due to palladium addition.Highly specialized chemical processing equipment, shafts and fixtures used in aggressive chemical production.

Example Applications of Titanium Rods

The superior characteristics of titanium rods make them essential in a variety of high-tech and industrial fields.

Aerospace & Defense

  • Airframe Components: Used for structural parts, landing gear, and fasteners where high strength and low weight are critical.
  • Engine Shafts & Parts: Withstands high temperatures and stresses in jet engine and turbine components.
  • Hydraulic System Tubing & Fittings: Provides a strong, corrosion-resistant, and lightweight solution for hydraulic lines.

Medical & Surgical

  • Orthopedic Implants: The primary material for hip and knee joint replacements, spinal fixation rods, and bone plates due to its biocompatibility and strength.
  • Dental Implants: Used for dental root implants and posts that fuse with the jawbone (osseointegration).
  • Surgical Instruments: Lightweight, strong, and can be repeatedly sterilized without degradation.

Industrial & Chemical Processing

  • Pump Shafts and Agitators: Its corrosion resistance prevents failure in aggressive chemical mixing and pumping applications.
  • Valves and Fittings: Ensures long service life in corrosive fluid handling systems.
  • Heat Exchanger Components: Resists corrosion from process fluids and cooling water, even at elevated temperatures.

Marine & Offshore

  • Propeller Shafts: Offers a lightweight and completely corrosion-proof alternative to stainless steel in saltwater environments.
  • Underwater Sensor Housings: Protects sensitive electronic equipment from high pressure and saltwater corrosion.
  • Rigs and Fasteners: Used for subsea equipment where long-term reliability and resistance to marine corrosion are essential.

High-Performance Automotive & Motorsport

  • Connecting Rods & Wrist Pins: Reduces reciprocating mass in high-performance engines, allowing for higher RPM and increased power.
  • Valves & Valve Retainers: Its heat resistance and light weight improve engine efficiency and reliability.

Frequently Asked Questions About Ordering

What diameter tolerances and surface finishes are available for titanium rods?
We supply titanium rods in turned/peeled (+/-0.2mm to +/-0.5mm) and centerless ground finishes (tight ISO precision h6, h7, h8, h9 for CNC Swiss lathe turning). Standard common diameters like 2.5mm and 3.2mm are maintained in regular stock.
Can you certify titanium bars to AMS 4928 for aerospace applications?
Yes. AMS 4928 bar is placed with execution mills that certify to that specification. The melting route (number of VAR remelts), forging reduction and ultrasonic inspection class (e.g. Class A or AA per AMS 2631) follow AMS 4928 and your purchase order, and are reported on the mill test certificate.
Does every shipment include a material test certificate?
Every shipment includes a packing list and a material test certificate (MTC), reporting chemical composition and mechanical properties, with heat/lot number traceability.
What is your Minimum Order Quantity (MOQ) and delivery lead time?
Through our partner network, large orders typically take 30–60 days. Worldwide delivery is available via air express (DHL/FedEx/UPS), air cargo, or ocean freight.
How are titanium products packed for export?
Through our partner network, photos and weights are recorded before shipment; export packing and marking follow customer requirements.
