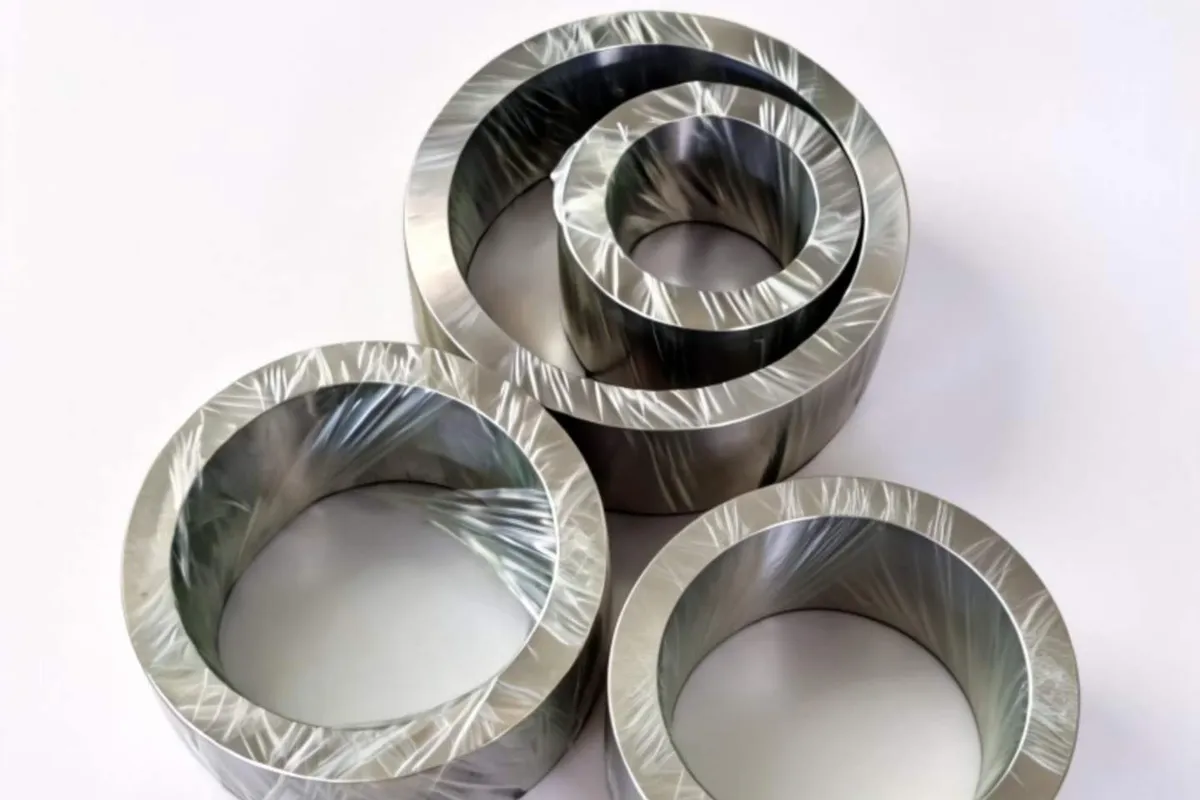

Titanium Forgings

Also known as: Titanium Forging , Titanium Ring Rolling, Titanium Forged Block

Titanium forgings are hot-worked shapes — rings, discs, shafts and blocks — supplied per ASTM B381, AMS 4928, AMS 4967, ASME in 11 titanium grades. Forging refines grain structure for higher fatigue strength than bar stock, which is why aerospace structural parts, flanges, rotors and pressure equipment are specified as forgings — custom-produced.

Ring OD 100mm – 2000mm
Ring Wall Thickness 20mm – 300mm
Disc Diameter 50mm – 1500mm
Disc Thickness 10mm – 400mm
Shaft Diameter 50mm – 500mm
Shaft Length Up to 3000mm
Surface As-forged, Rough machined, Finish machined
Inspection 100% UT
Standards ASTM B381 , AMS 4928 , AMS 4967 , ASME
Available Grades 11 grades

Quick Quote

24h Response

Send your drawing or specification for Titanium Forgings. We reply within 24 hours.

Reply within 24 hours 🔒 NDA available on request — your drawings stay confidential 📦 Small quantities ship as LCL; larger orders ship as full containers for simpler loading and customs inspection.

WhatsApp

Common Grades for Titanium Forgings

Click a grade to view its chemical composition and mechanical properties inline.

Grade 1

CPUNS: R50250GB: TA1

Softest, most formable CP titanium with best ductility. Ideal for deep drawing, welding, and chemical linings.

Full Grade Details →

Chemical Composition (wt%)

TiBalance
Fe0.20 max
O0.18 max
C0.08 max
N0.03 max
H0.015 max

Mechanical Properties

Tensile Strength240 MPa – 345 MPa
Yield Strength170 MPa – 310 MPa
Elongation (min)24%
Hardness120 HB
Elastic Modulus103 GPa

Made to order

Titanium Forgings Weight Calculator

Calculated Weight

Per piece0.585 kg
Imperial1.289 lbs

Grade 5 Properties

Density4.43 g/cm³Tensile895–1000 MPaYield828–910 MPaElongation10%

Request Quote for This Specification →

⚡ 24h Quote

Get pricing & lead time for this exact specification.

Quality & Documentation

📋

Material Test Certificate

Every shipment includes a packing list and a material test certificate (MTC). Heat/lot number traceability is maintained.

🔬

Testing & Inspection

Material is inspected for appearance and dimensions before release; chemical composition and mechanical properties are tested and reported on the certificate; independent third-party re-testing can be arranged on request.

🚚

Delivery

Through our partner network, large orders typically take 30–60 days. FOB China main port / CIF worldwide.

Technical Guide: Titanium Forgings

Titanium Forgings — From Billet to Precision Shape

Titanium forgings are produced by applying compressive force to titanium billets or ingots at elevated temperatures, reshaping the metal into rings, discs, blocks, shafts, and custom near-net shapes. The forging process refines the grain structure, eliminates internal porosity, and delivers superior mechanical properties compared to cast or machined-from-plate alternatives.

At Titanium Seller, forging is part of our daily production rhythm. The rings you see here — freshly forged, inspected, and crate-packed for shipment — represent a typical order from our partner facilities. No showcase pieces, just consistent quality rolling off the line.


Available Forms & Specifications

We supply titanium forgings in a wide range of shapes to suit your engineering requirements:

  • Forged Rings: OD 100–2000 mm, wall thickness 20–300 mm, height up to 500 mm
  • Forged Discs / Pancakes: Diameter 50–1500 mm, thickness 10–400 mm
  • Forged Blocks / Slabs: Custom dimensions per drawing
  • Forged Shafts / Bars: Diameter 50–500 mm, length up to 3000 mm
  • Custom Near-Net Shapes: Open-die and closed-die forging per your specifications

Surface finish: As-forged (black skin), rough machined, or finish machined to your tolerances.


Grades & Standards

GradeUNSTypical Applications
Grade 2 (CP-Ti)R50400Chemical processing, marine hardware
Grade 5 (Ti-6Al-4V)R56400Aerospace structures, high-strength components
Grade 7 (Ti-Pd)R52400Chemical reactors, corrosion-critical parts
Grade 23 (Ti-6Al-4V ELI)R56407Medical implants, fatigue-critical aerospace
TC4 (Chinese equivalent of Grade 5)—Defense, aviation, marine

Applicable Standards:

  • ASTM B381 — Standard specification for titanium and titanium alloy forgings
  • AMS 4928 — Ti-6Al-4V forging, solution treated and aged
  • AMS 4967 — Ti-6Al-4V bars, wire, and forgings
  • EN 2002-1 — Aerospace series, titanium alloy forgings

Our Forging Capabilities

Forging work is placed with qualified facilities operating hydraulic presses from 800 to 8,000 tonnes, equipped with:

  • Precision temperature control: Forging temperature monitored within ±15°C to ensure optimal grain refinement
  • Full heat treatment: Annealing, solution treatment, and aging per specification requirements
  • 100% ultrasonic inspection: Per ASTM B381 Class A/B requirements
  • Material traceability: Every forging ships with a Mill Test Certificate (MTC) including chemical composition, mechanical properties, and UT results

Quality Assurance

Every titanium forging undergoes:

  1. Raw material verification — Incoming titanium sponge and ingot with full chemistry certification
  2. Forging process control — Temperature, reduction ratio, and deformation rate per qualified procedure
  3. Heat treatment — In calibrated vacuum or atmosphere furnaces with time-temperature recording
  4. Non-destructive testing — Ultrasonic testing (UT), penetrant testing (PT) as required
  5. Dimensional inspection — CMM or manual measurement against drawing tolerances
  6. Documentation — MTC, UT report, heat treatment record, dimensional report

Packaging & Delivery

Forgings are carefully packed in wooden crates with foam cushioning to prevent surface damage during transit. We offer:

  • Standard packing: Wooden crate + foam + plastic wrap
  • Export packing: Fumigated wooden crate meeting ISPM-15 requirements
  • Delivery: FOB China main port / CIF your port, typical lead time 15–30 days depending on size and grade

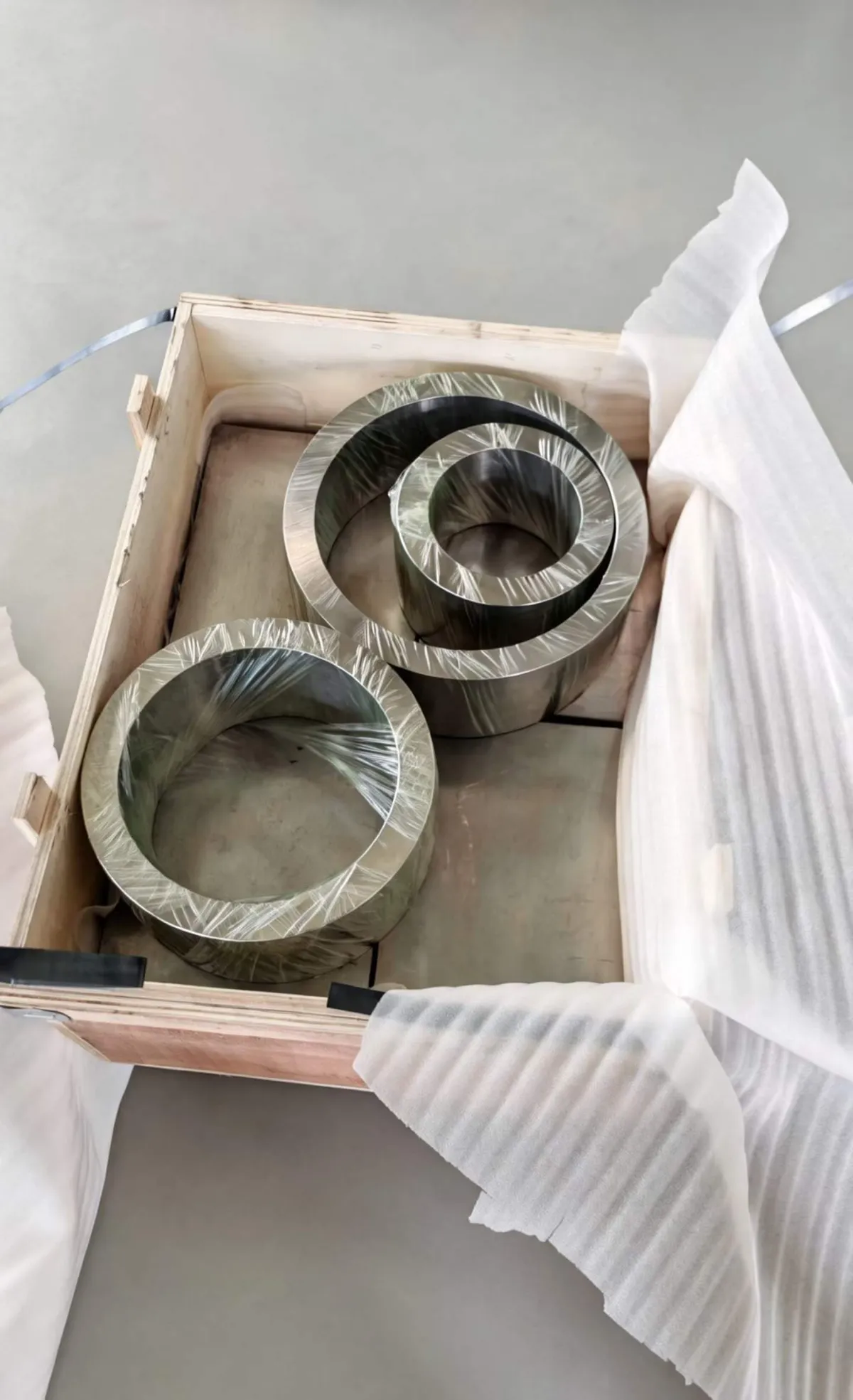

Titanium forged rings packed in wooden crate ready for shipment


Why Source Titanium Forgings?

Our partner network sits in a titanium production cluster that accounts for roughly 60% of China’s titanium output. By sourcing through Titanium Seller, you get:

  • Centralized QC — We audit and inspect at the mill on your behalf
  • One-stop supply — Forgings, bar stock, sheet, tube, and machined parts from a single source

Whether you need a single prototype ring or a production run of 500 forged discs, contact our team to discuss your requirements.

Frequently Asked Questions About Ordering

What forging forms and testing standards do you support?
We supply open-die forgings, closed-die components, forged discs, rolled rings (partner-mill range up to OD 3000mm, confirmed per order), and rectangular blocks to ASTM B381 and AMS 4928. Beta-transus determination, forging route and ultrasonic inspection class are specified per order and documented on the mill test certificate.
Does every shipment include a material test certificate?
Every shipment includes a packing list and a material test certificate (MTC), reporting chemical composition and mechanical properties, with heat/lot number traceability.
What is your Minimum Order Quantity (MOQ) and delivery lead time?
Through our partner network, large orders typically take 30–60 days. Worldwide delivery is available via air express (DHL/FedEx/UPS), air cargo, or ocean freight.
How are titanium products packed for export?
Through our partner network, photos and weights are recorded before shipment; export packing and marking follow customer requirements.
Can third-party re-testing be arranged?
Independent third-party re-testing can be arranged on request.
